JOPLAX Resin Socket, for mating Rc3/8 female thread installation, TS-3NR, 1 piece

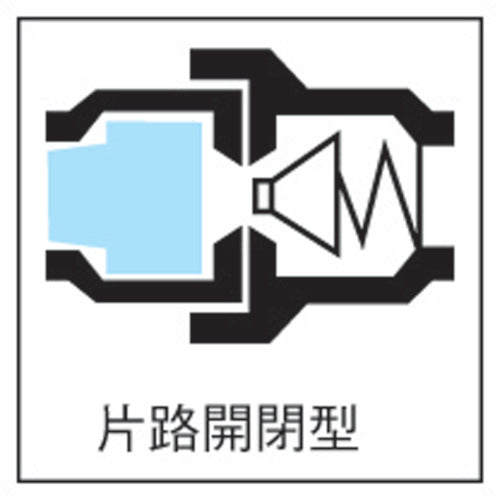

Catalog number: TS-3NR Features: ●Screw type. ●One-touch connection method. ●Safety lock mechanism is standard equipment. ●Excellent impact resistance due to the use of engineering plastics. ●Lightweight and rust-free plastic. Applications: ●General air piping. ●For the automotive and food industries. Specifications: ●Matching side mounting size: Rc3/8 ●Hexagonal face size (mm): 26 ●Maximum operating pressure (MPa): 1.0MPa ●Operating fluid: Air ●Operating temperature (℃): 0-50 ●Normal operating pressure (MPa): 0.98 ●Fluid temperature: 0-50℃ ●Normal pressure: 0-1.0MPa ●One-way opening and closing type ●For female thread installation Materials/Finish: ●Body: Polyphenylene ether (PPE) + nylon (PA) ●Seal rubber: Nitrile rubber (NBR) Note: ●Only TS-2NR has a reinforcing insert (made of brass) in the threaded part.
