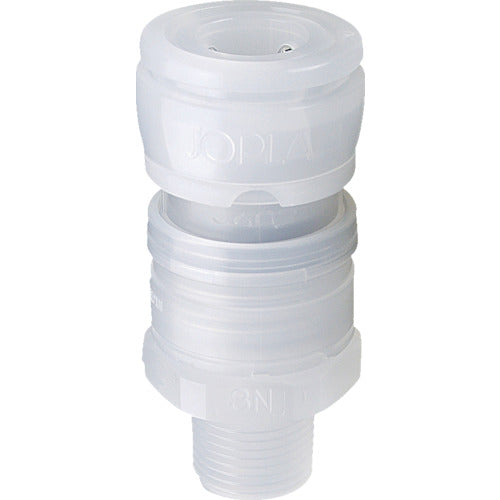

JOPLAX Resin Socket, Mating Side Mounting Rc (PT) 3/8, JOPLAX PP Series, TSV-3P, 1 Piece

Catalog number: TSV-3P Features: ●One-touch connection method allows for easy installation and removal. ●Used in the food, chemical and medical fields. ●One-way opening and closing. Applications: ●Hose piping joints, etc. Specifications: ●Hexagonal side (mm): 26 ●Operating temperature range (℃): 0 to 50 ●Maximum operating pressure (MPa): 0.7 ●Operating fluid: Water, chemicals (check each time) ●Hexagonal side (mm) body: 26 ●Operating temperature (℃): 0 to 50 ●Operating pressure: 0 to 0.7 Mpa ●Operating pressure (MPa): 0.7 ●Mounting size: R (PT) 3/8 ●Proper tightening torque: 3.0 N・m or less ●Matching side mounting size: Rc3/8 ●Normal pressure: 0 to 0.7 MPa ●Fluid temperature: 0 to 50℃ ●Liquid contact parts comply with the Food Sanitation Act/PL collection material used ●Excellent chemical resistance Material/Finish: ●Resin part: Polypropylene (PP) ●Rubber part: Fluorine ●Spring: Stainless steel (SUS316)
