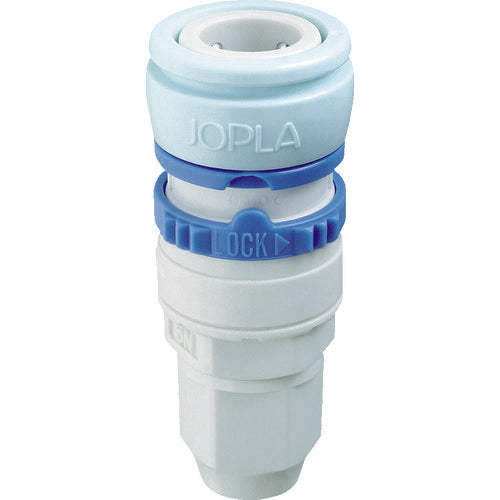

JOPLAX Resin Socket, Suitable for Hose Inner Diameter x Outer Diameter 5 x 8, for Hose Installation, TN-5WR, 1 Piece

Catalog number: TN-5WR Features: ●One-touch connection method allows for easy attachment and detachment. ●Water-contacting seal, packing material, and lubricant are made of materials that comply with the Food Sanitation Act. Applications: ●For water piping in beverage equipment, food equipment, filtration equipment, etc. Specifications: ●Matching hose size (mm): Φ5 x Φ8 ●Maximum operating pressure (MPa): 1.0MPa ●Fluid used: Water ●Hexagonal face size (mm) nut: 19 ●Hexagonal face size (mm) body: 22 ●Compatible hose inner diameter x outer diameter (mm): 5 x 8 ●Applicable fluid: Water ●Normal pressure: 0 to 1.0MPa ●Fluid temperature: 0 to 50°C ●One-way opening and closing type Materials/Finish: ●Body: Polyacetal (POM) ●Seal rubber: Nitrile rubber (NBR) ●Spring: Stainless steel (SUS316), Steel ball: Stainless steel (SUS304)
