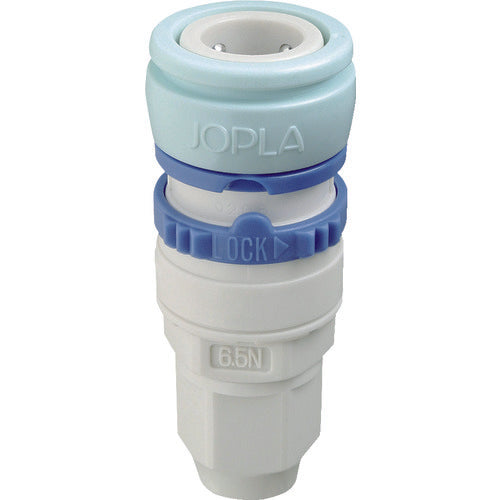

JOPLAX Resin Socket, Suitable for Hose Inner Diameter x Outer Diameter 6.5 x 10, for Hose Installation, TN-6.5WR, 1 Piece

Catalog number: TN-6.5WR Features: ●One-touch connection method allows for easy connection and disconnection. ●Safety lock mechanism is standard equipment. ●Water contact seals, packing materials, and lubricants (grease) are made of products that comply with Food Sanitation Act standards. ●All metal parts are made of stainless steel and are highly rust-resistant. Applications: ●For water piping in beverage equipment, food equipment, filtration equipment, etc. Specifications: ● Mating hose size (mm): Φ6.5 x Φ10 ● Operating temperature range (℃): 0 to 50 ● Maximum operating pressure (MPa): 1.0MPa ● Fluid used: Water ● Hexagonal side (mm) nut: 19 ● Hexagonal side (mm) body: 22 ● Compatible fluid: Water ● Mating hose size (inner and outer diameter φmm): 6.5 x 10 ● Compatible hose inner diameter x outer diameter (mm): 6.5 x 10 ● Operating temperature range: 0 to 50℃ ● Normal pressure: 0 to 1.0MPa ● One-way opening and closing type Materials/Finish: ● Body: Polyacetal (POM) ● Sealing rubber: Nitrile rubber (NBR) ● Spring, steel ball: Stainless steel (SUS)
