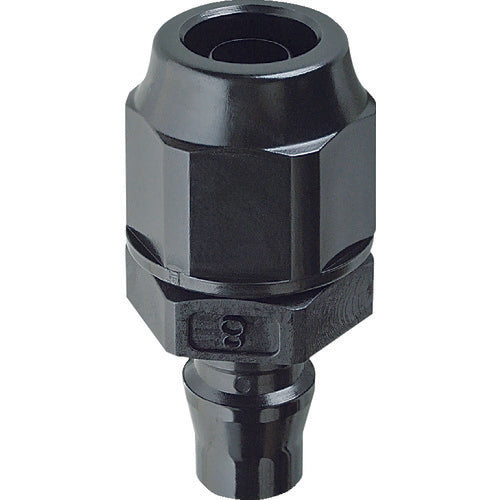

JOPLAX Resin Plug for 8.0 x 12.0 Hose Attachment JN-8N 1 Piece

Catalogue number: JN-8N Features: ● Excellent impact resistance due to the use of engineering plastics. ● Lightweight plastic. Applications: ● General air piping. ● For the automotive and food industries. Specifications: ● Mating hose size (mm): Φ8 x Φ12 ● Operating temperature range (℃): 0-50 ● Maximum operating pressure (MPa): 1.0 ● Fluid used: Air ● Hexagonal width (mm) nut: 22 ● Hexagonal width (mm) body: 22 ● Operating temperature (℃): 0-50 ● Operating pressure: 0-1.0Mpa ● Normal operating pressure (MPa): 0.98 ● Fluid temperature: 0-50℃ ● Normal pressure: 0-1.0MPa ● For hose attachment Material/Finish: ● Body: Polyacetal (POM)
