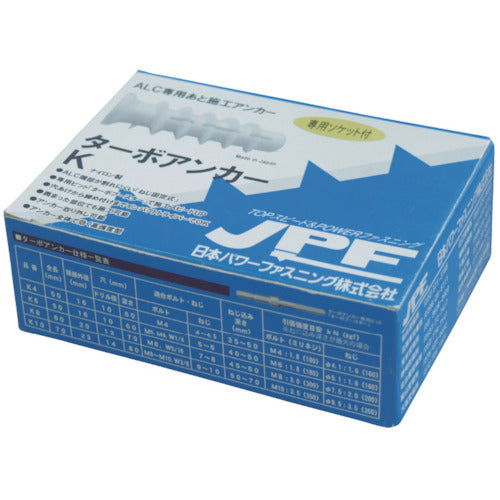

JPF Turbo Anchor Power Box K10 K10 40 pieces

Catalog number: K10 Features: ● A "screw-fixed" anchor that makes it difficult for the ALC ends to crack. ● Using the high-speed impact bit "Turbo Booster" significantly increases construction speed. ● Can be used with a variety of bolts and screws, including metric, inch, and wood screws. ● Firmly bites into the ALC for great strength. ● Small drill diameter improves construction and reduces damage to the ALC. ● Can be removed even after construction. ● Can be constructed with an impact driver from drilling to fixing. Applications: ● For ALC base material. ●Bracket for electronics panels, lighting equipment, and piping●Handrail bracket●Fixing the base for exterior wall renovation●Fixing eye nuts for bird nets●Wall greening●Rain gutters Specifications: ●Installation method: M8-M10.W3/8●Screw size: 22●Outer diameter (mm): 23●Total length (mm): 70●Drilling depth (mm): 80●Embedding depth (mm): 70●Drill diameter (mm): 14.0●Head diameter (mm): 23●Compatible screws: 9-10●Body diameter (mm): 22.0●Compatible bolts: M8-10, W3/8●Screw depth (mm): 50-70●Boxed Material/Finish: ●Nylon 66 Set contents/Accessories: ●1 turbo booster Caution: ●The tensile strength guideline is based on an ALC 100mm thick panel with a compressive strength of 4N/square millimeter. ●Please wear safety glasses and protective gear.
