JST vinyl insulated round terminal (straight type) V0.5-3 100 pieces V0.5-3 1 bag

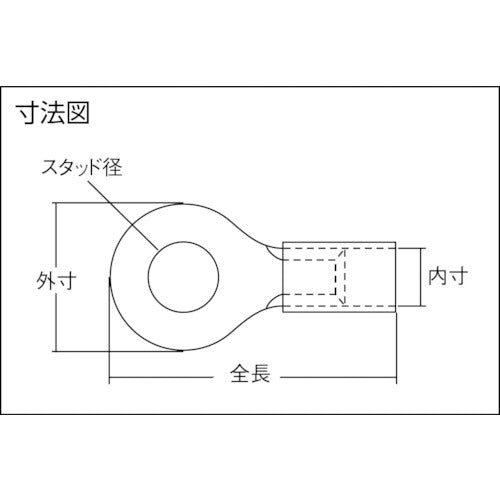

Catalog number: V0.5-3 Features: ● An insulated crimp terminal with a rounded contact surface (tongue) and mounting holes for screw fixing. Applications: ● Used to connect soft copper stranded wires. Specifications: ● Wire clamping range Stranded wire (mm2): 0.2-0.5 ● Wire clamping range AWG: 24-22 ● Color: Yellow ● External diameter (mm): 5.2 ● Stud diameter (mm): 3.2 ● Total length (mm): 16.4 ● Internal dimensions (mm): 1.9 ● JIS standard product: × ● Round (not compatible with solid wire) ● 0.5SQ: Yellow ● 1.25SQ: Red ● 2SQ: Blue ● 5.5SQ: Yellow Materials/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating ● Insulation: Vinyl
