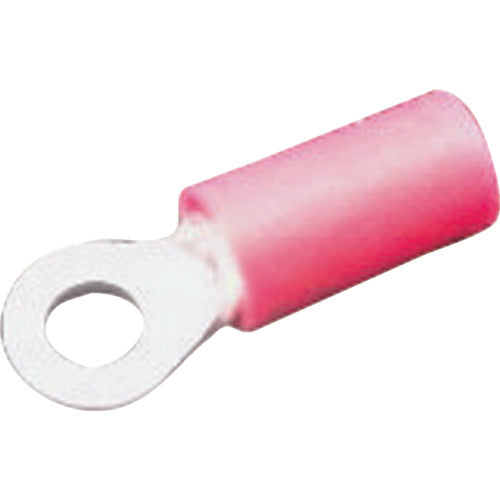

JST vinyl insulated round terminal (straight type) V1.25-M4 100 pieces V1.25-M4 1 bag

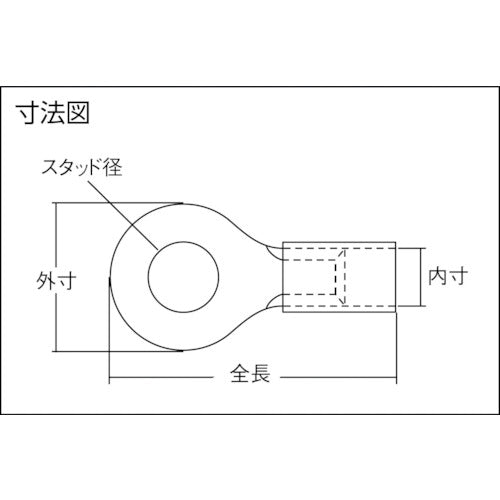

Catalog number: V1.25-M4 Features: ● An insulated crimp terminal with a rounded contact surface (tongue) and mounting holes for screw fixing. Applications: ● Used to connect soft copper stranded wires. Specifications: ● Wire clamping range Stranded wire (mm2): 0.25-1.65 ● Wire clamping range AWG: 22-16 ● Color: Red ● External diameter (mm): 6.6 ● Stud diameter (mm): 4.3 ● Total length (mm): 18.6 ● Internal dimensions (mm): 3.2 ● JIS standard product: × ● Round (not compatible with solid wire) ● 0.5SQ: Yellow ● 1.25SQ: Red ● 2SQ: Blue ● 5.5SQ: Yellow Materials/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating ● Insulation: Vinyl
