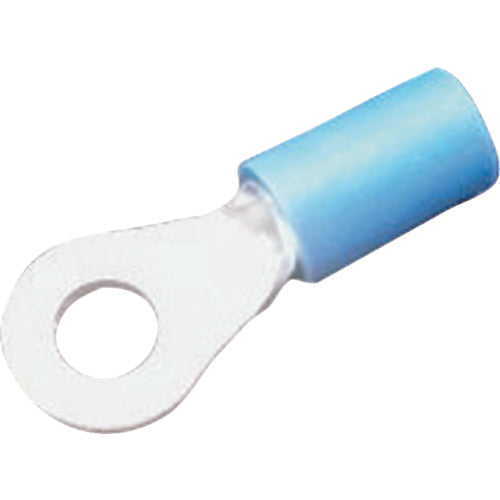

JST vinyl insulated round terminal (straight type) V2-S3.3 100 pieces V2-S3.3 1 bag

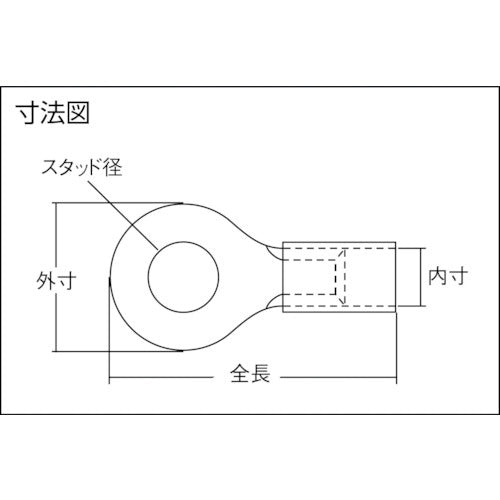

Catalog number: V2-S3.3 Features: ● An insulated crimp terminal with a rounded contact surface (tongue) and mounting holes for screw fixing. Applications: ● Used to connect soft copper stranded wires. Specifications: ● Wire clamping range Stranded wire (mm2): 1.04-2.63 ● Wire clamping range AWG: 16-14 ● Color: Blue ● External diameter (mm): 6.4 ● Stud diameter (mm): 3.2 ● Total length (mm): 16.5 ● Internal dimensions (mm): 3.9 ● JIS standard product: × ● Round (not compatible with solid wire) ● 0.5SQ: Yellow ● 1.25SQ: Red ● 2SQ: Blue ● 5.5SQ: Yellow Materials/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating ● Insulation: Vinyl
