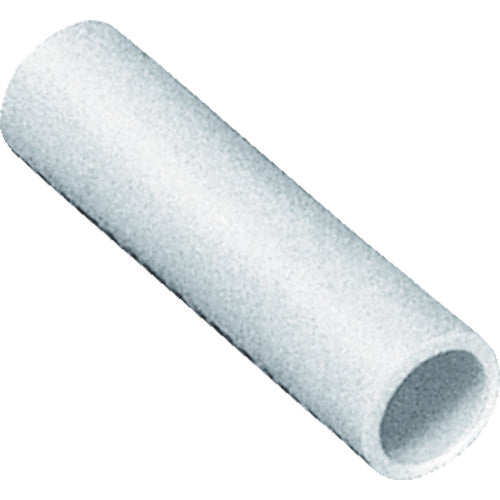

JST Vinyl insulated butt connector VC-5.5 100 pieces VC-5.5 1 bag

Catalog number: VC-5.5 Features: ● A sleeve is combined with an insulating coating. Applications: ● With insulating coating for butt joint sleeves (B type). Specifications: ● Wire clamping range Stranded wire (mm2): 2.63 to 6.64 ● Wire clamping range AWG: 12/10 ● Color: Yellow ● Total length (mm): 26.7 ● Inner dimension (mm): 5.4 ● JIS standard product: × ● L (mm): 15 ● 1.25SQ: Red ● 2SQ: Blue ● 5.5SQ: Yellow Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating ● Insulation: Vinyl
