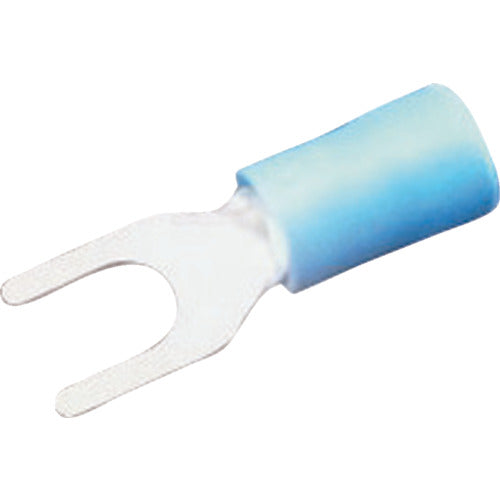

JST Vinyl insulated square tip open terminal (F type) FV2-N3A 100 pieces FV2-N3A 1 bag

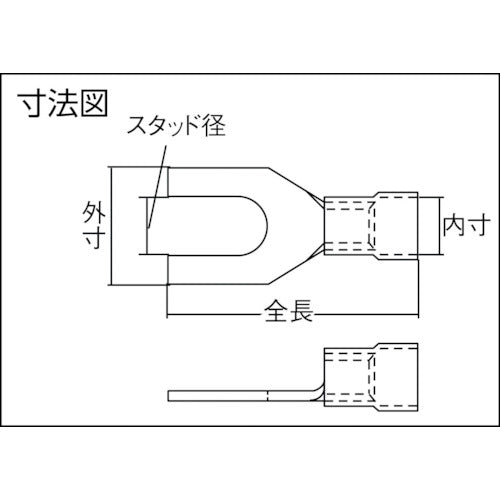

Catalog number: FV2-N3A Features: ●One side of the mounting hole on the contact surface (tongue) is open, making this an insulated crimp terminal that can be installed without completely removing the screw. Applications: ●Used to connect soft copper stranded wires. Specifications: ●Wire clamping range Stranded wire (mm2): 1.04-2.63 ●Wire clamping range AWG: 16-14 ●Color: Blue ●External diameter (mm): 5.9 ●Stud diameter (mm): 3.2 ●Total length (mm): 20.0 ●Inner dimension (mm): 4.5 ●JIS standard product: × ●External dimensions (mm): 5.9 ●Open tip type (not compatible with solid wire) ●1.25SQ: Red ●2SQ: Blue Materials/Finish: ●Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating ●Insulation: Vinyl
