日本圧着端子製造（株）
JST Round Terminal 0.5-2 (100 pieces) 0.5-2 1 bag
JST Round Terminal 0.5-2 (100 pieces) 0.5-2 1 bag
Regular price
¥733
Regular price
Sale price
¥733
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

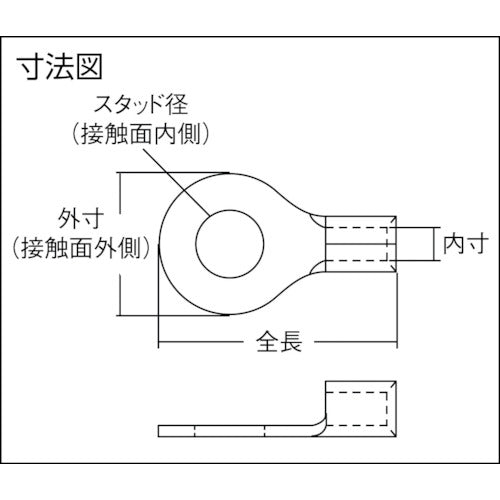

Catalog number: 0.5-2 Features: ● A bare crimp terminal with a rounded contact surface (tongue) and a mounting hole for screw fixing. Applications: ● Used to connect soft copper stranded wire or solid wire. Specifications: ● Wire clamping range Solid wire (mm): 0.35-0.7 ● Wire clamping range Stranded wire (mm2): 0.2-0.5 ● Wire clamping range AWG: 26-22 ● External diameter (mm): 5.2 ● Stud diameter (mm): 2.2 ● Total length (mm): 12.4 ● Internal dimension (mm): 1 ● JIS standard product: × ● Color: Silver ● Round shape Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
