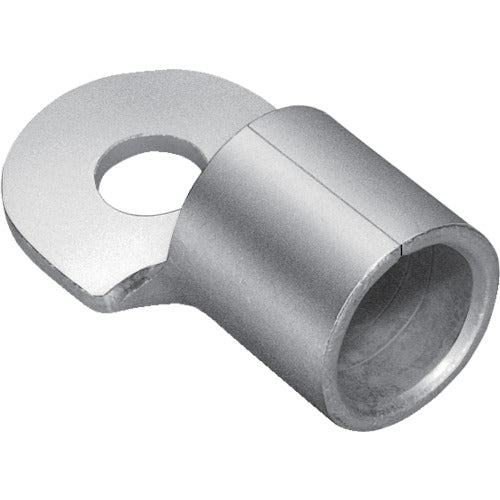

JST Round Terminal 100-6 (3 pieces) 100-6 1 bag

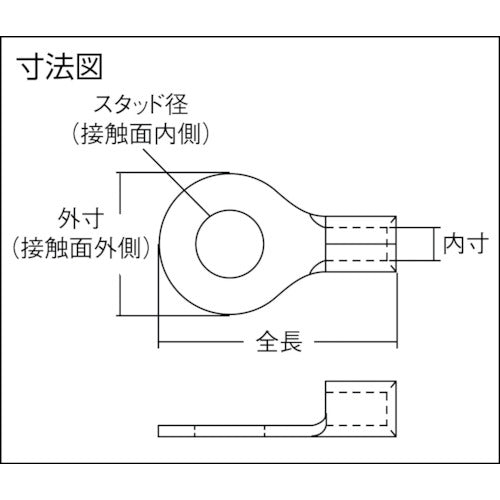

Catalog number: 100-6 Features: ● A bare crimp terminal with a rounded contact surface (tongue) and a mounting hole for screw fixing. Applications: ● Used to connect soft copper stranded wire or solid wire. Specifications: ● Wire clamping range Solid wire (mm): 10.41-11.68 ● Wire clamping range Stranded wire (mm2): 96.3-117.2 ● Wire clamping range AWG: 4/0 ● External diameter (mm): 28.5 ● Stud diameter (mm): 6.4 ● Total length (mm): 55.6 ● Internal dimension (mm): 16.4 ● JIS standard product: × ● Color: Silver ● Round shape Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
