日本圧着端子製造（株）
JST Round Terminal 1.25-6 (1 bag (box) = 100 pieces) 1.25-6 1 bag
JST Round Terminal 1.25-6 (1 bag (box) = 100 pieces) 1.25-6 1 bag
Regular price
¥1,213
Regular price
Sale price
¥1,213
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

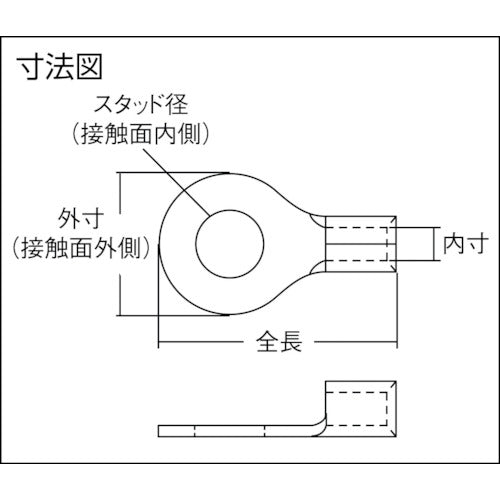

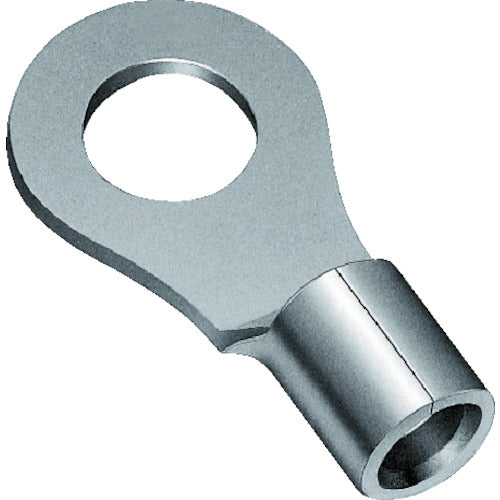

Catalog number: 1.25-6 Features: ● A bare crimp terminal with a rounded contact surface (tongue) and a mounting hole for screw fixing. Applications: ● Used to connect soft copper stranded wire or solid wire. Specifications: ● Wire clamping range Solid wire (mm): 0.57-1.44 ● Wire clamping range Stranded wire (mm2): 0.25-1.65 ● Wire clamping range AWG: 22-16 ● External diameter (mm): 11.6 ● Stud diameter (mm): 6.4 ● Total length (mm): 21.7 ● Internal dimension (mm): 1.7 ● JIS standard product: × ● Color: Silver ● Round shape Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
