JST Round Terminal (5 pieces) Wire Clamping Range AWG: 3/0 80-12 1 bag
JST Round Terminal (5 pieces) Wire Clamping Range AWG: 3/0 80-12 1 bag
Regular price
¥1,541
Regular price
Sale price
¥1,541
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

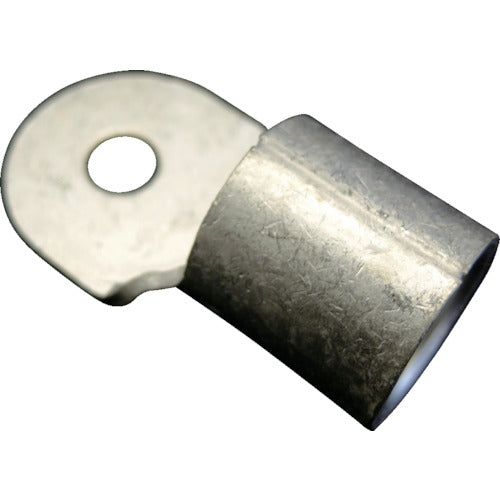

Catalog number: 80-12 Features: ● A bare crimp terminal with a rounded contact surface (tongue) and mounting holes for screw fixing. Applications: ● For connecting soft copper stranded wire or solid wire. Specifications: ● Wire clamping range Stranded wire (mm2): 76.28-96.3 ● Wire clamping range AWG: 3/0 ● Total length (mm): 54.2 ● Round and solid wire compatible type Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
