日本圧着端子製造（株）
JST Round Terminal 5.5-S5 (1 bag (box) = 100 pieces) 5.5-S5 1 bag
JST Round Terminal 5.5-S5 (1 bag (box) = 100 pieces) 5.5-S5 1 bag
Regular price
¥1,619
Regular price
Sale price
¥1,619
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

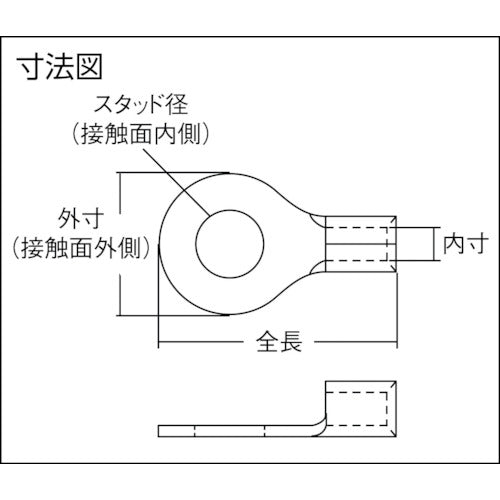

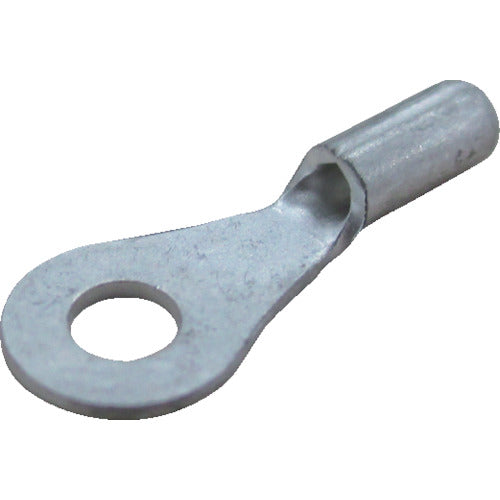

Catalog number: 5.5-S5 Features: ● A bare crimp terminal with a rounded contact surface (tongue) and a mounting hole for screw fixing. Applications: ● Used to connect soft copper stranded wire or solid wire. Specifications: ● Wire clamping range Solid wire (mm): 1.82-2.89 ● Wire clamping range Stranded wire (mm2): 2.63-6.64 ● Wire clamping range AWG: 12-10 ● External diameter (mm): 13.2 ● Stud diameter (mm): 5.3 ● Total length (mm): 22.4 ● Internal dimension (mm): 3.4 ● JIS standard product: × ● Color: Silver ● Round shape Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
