JST Round Terminal 60-6 (5 pieces) 60-6 1 bag

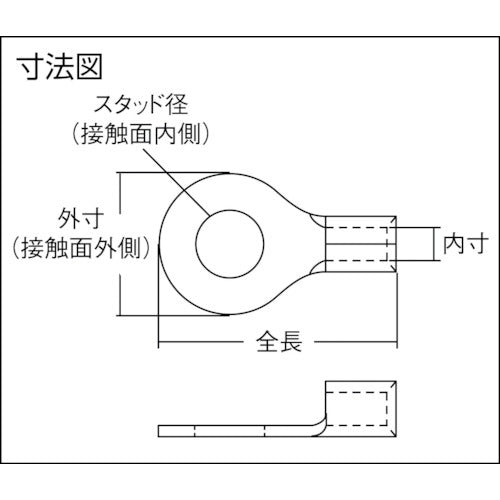

Catalog number: 60-6 Features: ● A bare crimp terminal with a rounded contact surface (tongue) and a mounting hole for screw fixing. Applications: ● Used to connect soft copper stranded wire or solid wire. Specifications: ● Wire clamping range Solid wire (mm): 7.34-8.26 ● Wire clamping range Stranded wire (mm2): 42.42-60.57 ● Wire clamping range AWG: 1/0 ● External diameter (mm): 22 ● Stud diameter (mm): 6.4 ● Total length (mm): 49.7 ● Internal dimension (mm): 11.4 ● JIS standard product: × ● Color: Silver ● Round shape Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
