JST Round Terminal 8-8NS (10 pieces) 8-8NS 1 bag

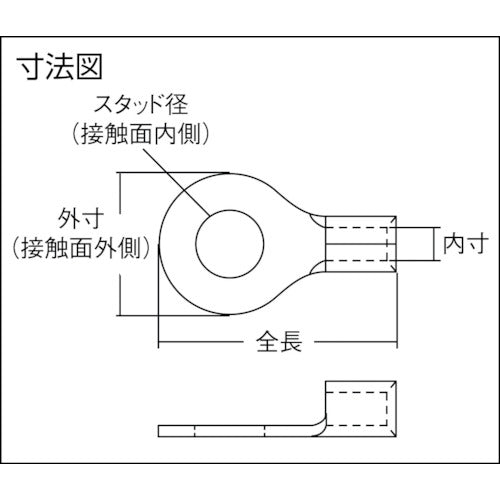

Catalog number: 8-8NS Features: ● A bare crimp terminal with a rounded contact surface (tongue) and a mounting hole for screw fixing. Applications: ● Used to connect soft copper stranded wire or solid wire. Specifications: ● Wire clamping range Solid wire (mm): 2.89 to 3.65 ● Wire clamping range Stranded wire (mm2): 6.64 to 10.52 ● Wire clamping range AWG: 8 ● External diameter (mm): 11.5 ● Stud diameter (mm): 8.4 ● Total length (mm): 28.1 ● Internal dimension (mm): 4.5 ● JIS standard product: × ● Color: Silver ● Round shape Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
