日本圧着端子製造（株）
JST round terminal R2-3.5 (1 bag (box) = 100 pieces) R2-3.5 1 bag
JST round terminal R2-3.5 (1 bag (box) = 100 pieces) R2-3.5 1 bag
Regular price
¥733
Regular price
Sale price
¥733
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

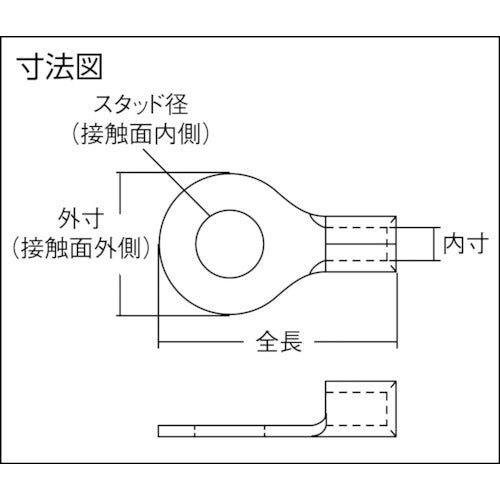

Catalog number: R2-3.5 Features: ● A bare crimp terminal with a rounded contact surface (tongue) and a mounting hole for screw fixing. Applications: ● Used to connect soft copper stranded wire or solid wire. Specifications: ● Wire clamping range Solid wire (mm): 1.14-1.82 ● Wire clamping range Stranded wire (mm2): 1.04-2.63 ● Wire clamping range AWG: 16-14 ● External diameter (mm): 6.6 ● Stud diameter (mm): 3.7 ● Total length (mm): 14.4 ● Internal dimension (mm): 2.3 ● JIS standard product: Yes ● Color: Silver ● Round shape Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
