日本圧着端子製造(株)
JST Rod Terminal TUB-5.5 100pcs TUB-5.5 1 bag
JST Rod Terminal TUB-5.5 100pcs TUB-5.5 1 bag
Regular price
¥2,022
Regular price
Sale price
¥2,022
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

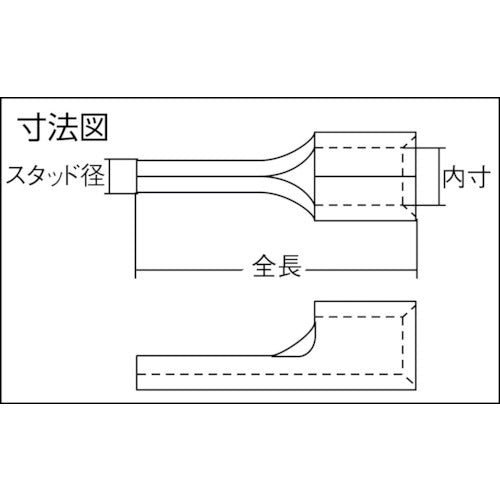

Catalog number: TUB-5.5 Features: ●The tongue is rod-shaped (round bar) and fits snugly inside the device. Applications: ●For plug-in terminal blocks and switches. Specifications: ●Wire clamping range Solid wire (mm): 1.82-2.89 ●Wire clamping range Stranded wire (mm2): 2.63-6.64 ●Wire clamping range AWG: 12/10 ●External diameter (mm): 5.7 ●Stud diameter (mm): 2.7 ●Total length (mm): 20 ●Inner dimension (mm): 3.7 ●Color: Silver ●Rod-shaped and solid wire compatible type Material/Finish: ●Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
