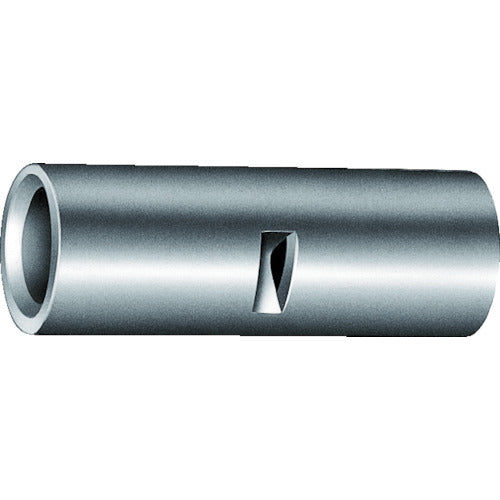

JST Butt Sleeve (B Type) B-100 (5 pieces) B-100 1 bag
JST Butt Sleeve (B Type) B-100 (5 pieces) B-100 1 bag
Regular price
¥1,868
Regular price
Sale price
¥1,868
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalogue number: B-100 Features: ●The tube has a wire stopper. Applications: ●Insert wires from both sides of the sleeve, and butt the wires together at the protrusions (stoppers) inside the sleeve for crimping and connection. Specifications: ●Wire clamping range Stranded wire (mm2): 96.3-117.2 ●Wire clamping range AWG: 4/0 ●Total length (mm): 38.0 ●Inner dimensions (mm): 16.4 ●JIS standard product: Yes ●Color: Silver ●External dimensions (mm): 22.1 Material/Finish: ●Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
