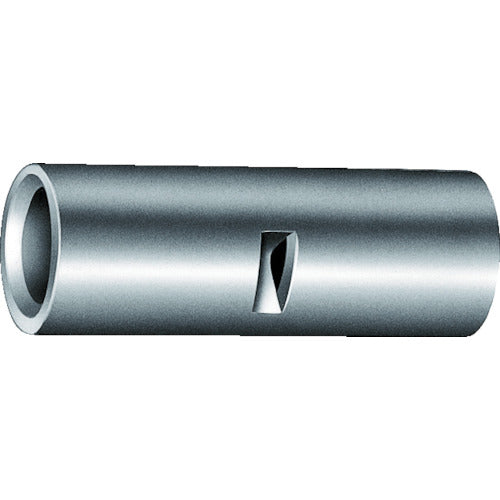

JST Butt Sleeve (B Type) B-14 (10 pieces) B-14 1 bag

Catalogue number: B-14 Features: ●The tube has a wire stopper. Applications: ●Insert wires from both sides of the sleeve, and butt the wires together at the protrusions (stoppers) inside the sleeve for crimping and connection. Specifications: ●Wire clamping range Stranded wire (mm2): 10.52-16.78 ●Wire clamping range AWG: 6 ●Total length (mm): 26.0 ●Inner dimensions (mm): 5.8 ●JIS standard product: Yes ●Color: Silver ●External dimensions (mm): 8.9 Material/Finish: ●Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
