日本圧着端子製造(株)

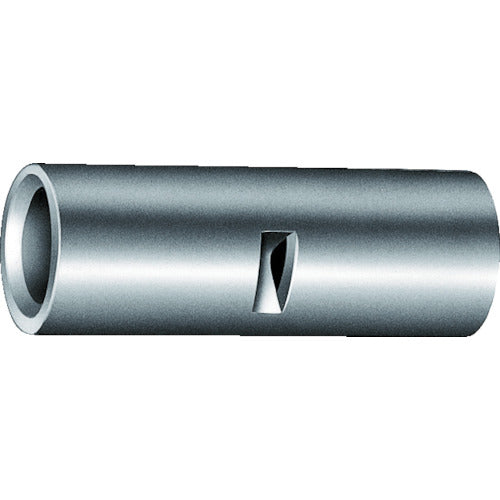

JST Butt Sleeve (B Type) B-2 (1 bag (box) = 100 pieces) B-2 1 bag
JST Butt Sleeve (B Type) B-2 (1 bag (box) = 100 pieces) B-2 1 bag
Regular price
¥1,868
Regular price
Sale price
¥1,868
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: B-2 Features: ● The tube has a wire stopper. Applications: ● Insert wires from both sides of the sleeve, and then butt the wires together at the protrusions (stoppers) inside the sleeve for crimping and connection. Specifications: ● Wire clamping range Stranded wire (mm2): 1.04-2.63 ● Wire clamping range AWG: 16-14 ● Total length (mm): 15.0 ● Inner dimensions (mm): 2.3 ● JIS standard product: Yes ● Color: Silver ● External dimensions (mm): 4.1 Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
