日本圧着端子製造（株）

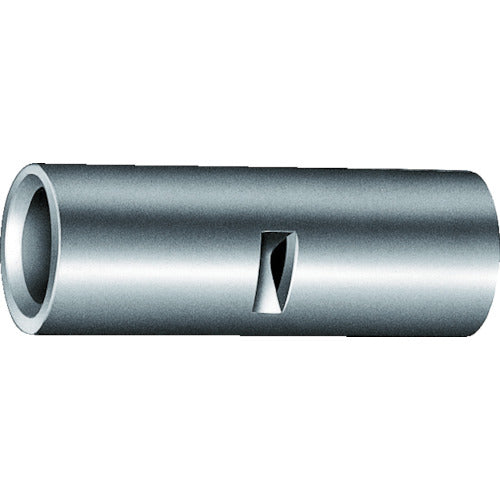

JST Butt Sleeve (B Type) B-38 (10 pieces) B-38 1 bag
JST Butt Sleeve (B Type) B-38 (10 pieces) B-38 1 bag
Regular price
¥1,868
Regular price
Sale price
¥1,868
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: B-38 Features: ● The tube has a wire stopper. Applications: ● Insert wires from both sides of the sleeve, and then butt the wires together at the protrusions (stoppers) inside the sleeve for crimping and connection. Specifications: ● Wire clamping range Stranded wire (mm2): 26.66-42.42 ● Wire clamping range AWG: 2 ● Total length (mm): 32.0 ● Inner dimensions (mm): 9.4 ● JIS standard product: Yes ● Color: Silver ● External dimensions (mm): 13.2 Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
