JST Square tip open terminal 0.5-3A (100 pieces) 0.5-3A 1 bag

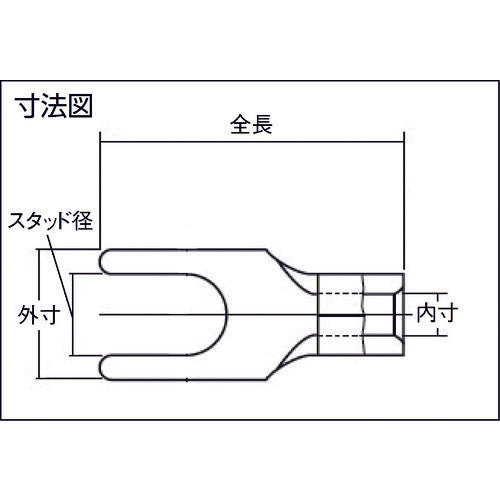

Catalog number: 0.5-3A Features: ●One side of the mounting hole on the contact surface (tongue) is open, making this a bare crimp terminal that can be installed without completely removing the screw. Applications: ●Used to connect soft copper stranded wire or solid wire. Specifications: ●Wire clamping range Solid wire (mm): 0.35-0.7 ●Wire clamping range Stranded wire (mm2): 0.2-0.5 ●Wire clamping range AWG: 26-22 ●External dimension (mm): 5.0 ●Stud diameter (mm): 3.2 ●Total length (mm): 12.5 ●Inner dimension (mm): 1 ●Color: Silver ●External dimension (mm): 5.0 ●Open tip type, compatible with solid wire Material/Finish: ●Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
