JST Square tip open terminal 1.25-S3A (1 bag (box) = 100 pieces) 1.25-S3A 1 bag

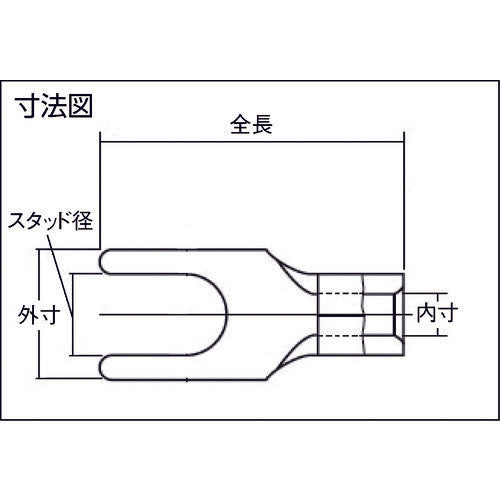

Catalog number: 1.25-S3A Features: ●One side of the mounting hole on the contact surface (tongue) is open, making this a bare crimp terminal that can be installed without completely removing the screw. Applications: ●Used to connect soft copper stranded wire or solid wire. Specifications: ●Wire clamping range Solid wire (mm): 0.57-1.44 ●Wire clamping range Stranded wire (mm2): 0.25-1.65 ●Wire clamping range AWG: 22-16 ●External dimension (mm): 7.2 ●Stud diameter (mm): 3.7 ●Total length (mm): 15.8 ●Inner dimension (mm): 1.7 ●Color: Silver ●External dimension (mm): 7.2 ●Open tip type, compatible with solid wire Material/Finish: ●Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
