日本圧着端子製造（株）

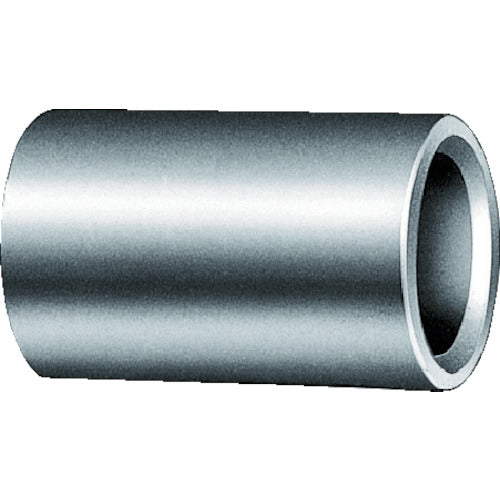

JST Stacking Sleeve (P Type) P-200 1 Piece P-200 1 Bag
JST Stacking Sleeve (P Type) P-200 1 Piece P-200 1 Bag
Regular price
¥1,463
Regular price
Sale price
¥1,463
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: P-200 Features: ● The tube has a straight shape. Applications: ● For crimping and connecting overlapping wires inside the sleeve (inside the tube). Specifications: ● Wire clamping range Stranded wire (mm2): 192.60-242.27 ● Wire clamping range AWG: 400MCM ● Total length (mm): 32 ● Inner dimensions (mm): 24 ● JIS standard product: ○ ● Color: Silver ● External dimensions (mm): 32.4 ● Standard width (mm): 200 Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
