日本圧着端子製造（株）

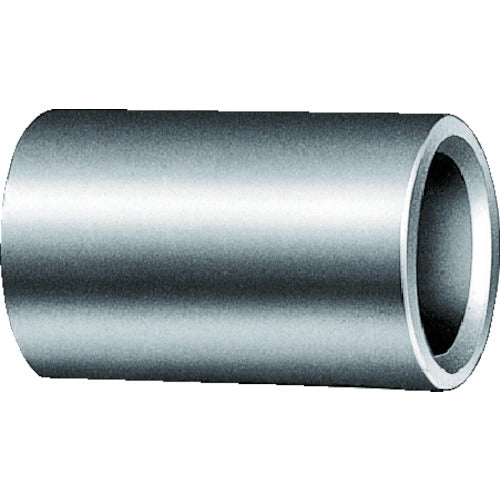

JST Stacking Sleeve (P Type) P-5.5 (1 bag (box) = 100 pieces) P-5.5 1 bag
JST Stacking Sleeve (P Type) P-5.5 (1 bag (box) = 100 pieces) P-5.5 1 bag
Regular price
¥1,213
Regular price
Sale price
¥1,213
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: P-5.5 Features: ● The tube has a straight shape. Applications: ● For crimping and connecting overlapping electric wires inside the sleeve (inside the tube). Specifications: ● Wire clamping range Stranded wire (mm2): 2.63 to 6.64 ● Wire clamping range AWG: 12/20 ● Total length (mm): 8.5 ● Inner dimensions (mm): 3.4 ● JIS standard product: ○ ● Color: Silver ● External dimensions (mm): 5.4 Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
