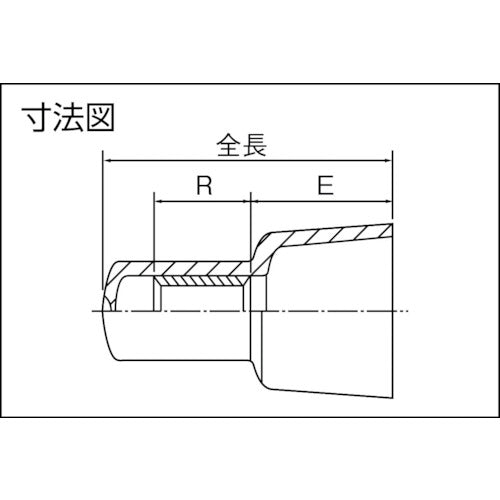

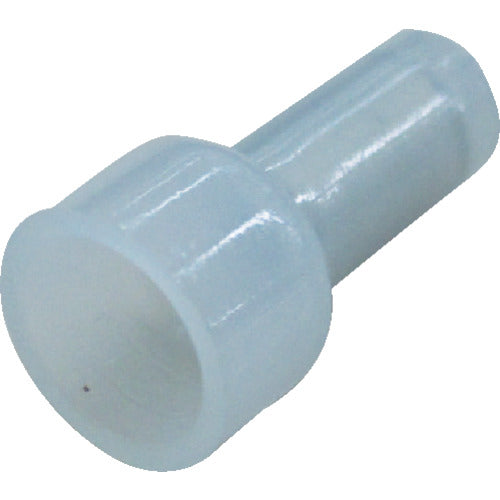

Catalog number: 1-SD Features: ● One side of the insulating coating is closed. Applications: ● For overlapping and connecting multiple wires in wiring inside equipment. Specifications: ● Wire clamping range Stranded wire (mm2): 1.0-1.75 ● Rated current (A): 300 ● Total length (mm): 15.2 ● R (mm): 8.0 ● E (mm): 5.9 ● Inner diameter (mm): 6.2 ● JIS standard product: × ● Inner dimensions (mm): 6.2 ● Color: Milky white ● General tools: YS-2216 Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating ● Insulation: Nylon
