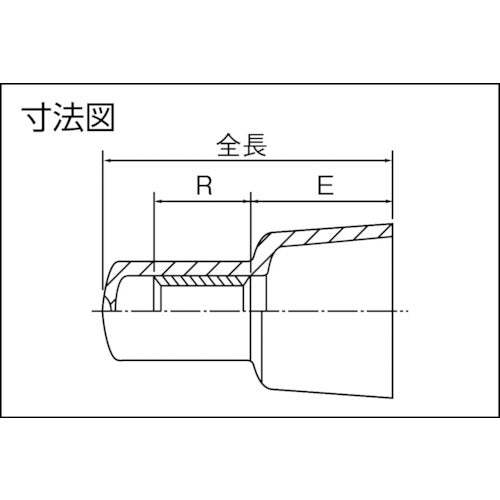

Catalog number: 5.5-SD Features: ● One side of the insulating coating is closed. Applications: ● For overlapping and connecting multiple wires in wiring inside equipment. Specifications: ● Wire clamping range Stranded wire (mm2): 2.0-5.5 ● Rated current (A): 600 ● Total length (mm): 17.8 ● R (mm): 8.5 ● E (mm): 8.0 ● Inner diameter (mm): 9.4 ● JIS standard product: × ● Inner dimensions (mm): 9.4 ● Color: Milky white ● General tools: YS-1210 Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating ● Insulation: Nylon
