JST closed end connector CE-1 100 pieces CE-1 1 bag

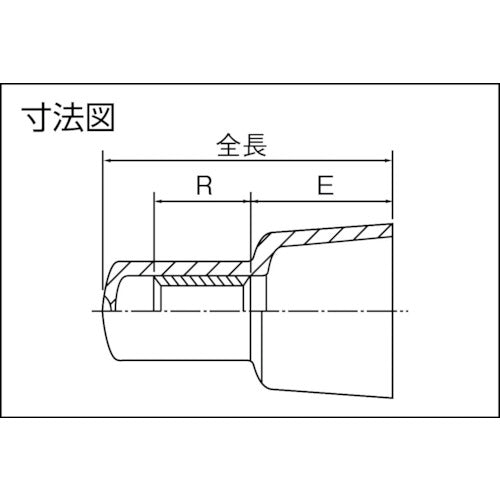

Catalog number: CE-1 Features: ●One side of the insulating coating is closed. Applications: ●For connecting multiple wires by overlapping them when wiring inside equipment. Specifications: ●Wire clamping range Stranded wire (mm2): 0.5 to 1.75 ●Wire clamping range AWG: 22-16 ●Rated current (A): 600 ●Total length (mm): 20.8 ●R (mm): 7.0 ●E (mm): 9.5 ●Inner diameter (mm): 6.5 ●JIS standard product: Yes ●Inner dimension (mm): 6.5 ●Color: Milky white ●General tools: YS-2216 Material/Finish: ●Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating ●Insulation: Nylon
