JST closed end connector CE-5 100 pieces CE-5 1 bag

JST closed end connector CE-5 100 pieces CE-5 1 bag

JAN： 　
Closed End Connector Connection terminals Electrical wiring parts Electronics JST crimp terminal
¥1,943
¥1,943
Sale Sold out
Shipping calculated at checkout.

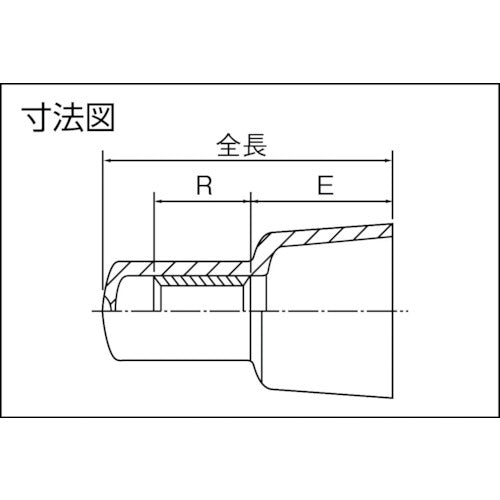

Catalog number: CE-5 Features: ●One side of the insulating coating is closed. Applications: ●For connecting multiple wires by overlapping them when wiring inside equipment. Specifications: ●Wire clamping range Stranded wire (mm2): 2.5-6.0 ●Wire clamping range AWG: 12-10 ●Rated current (A): 600 ●Total length (mm): 27.0 ●R (mm): 8.5 ●E (mm): 12.0 ●Inner diameter (mm): 9.5 ●JIS standard product: ○ ●Inner dimension (mm): 9.5 ●Color: Milky white ●General tool: YS-1210 Material/Finish: ●Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating ●Insulation: Nylon
