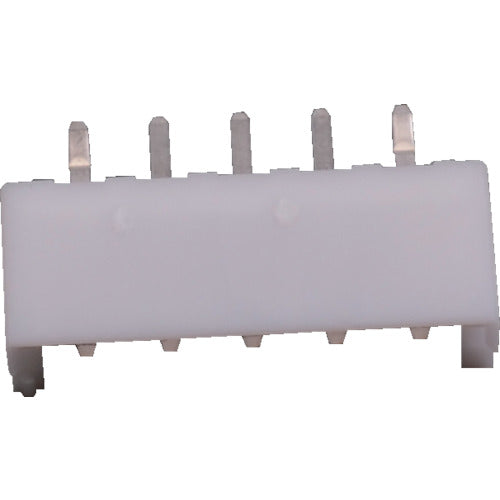

JST EH connector base pin top type (100 pieces) B10B-EH 1 bag

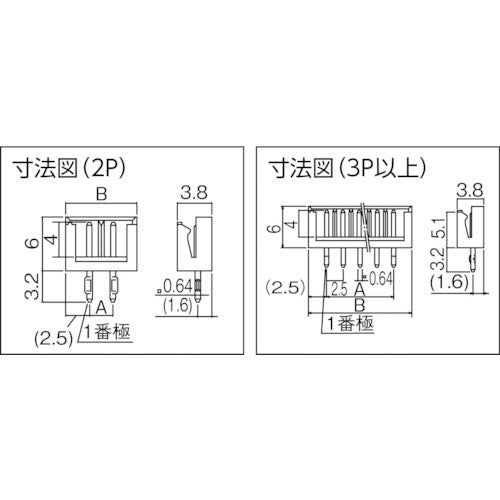

Catalog number: B10B-EH Features: ●High contact reliability achieved by slim design. ●Has a mechanism to prevent incorrect insertion. Applications: ●For wiring inside equipment. ●2.5mm pitch for wire-to-board connection. Specifications: ●Number of poles: 10 ●Applicable wire range: AWG #30 to #22 ●Shape: Top type ●Withstand voltage (V): AC800/1 minute ●Rated current: 3A ●A (mm): 22.5 ●B (mm): 27.5 ●Insulation resistance: 1000MΩ or more ●Rated voltage (V): 250V ●Operating temperature range: -25℃ to +85℃ (including temperature rise value) Material/Finish: ●Base: Nylon 66 (Flame retardant grade UL94V-0) ●Brass, copper undercoated, tin-plated (reflow treatment)
