JST NH Connector Housing 100pcs H7P-SHF-AA 1 bag

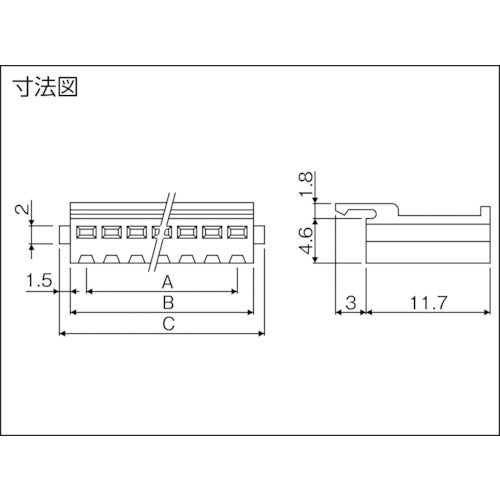

Catalog number: H7P-SHF-AA Features: ●Highly reliable leaf-shaped spring structure. ●Double-sided contact. Applications: ●For wiring inside equipment. ●2.5mm pitch for wire-to-board connection. Specifications: ●Number of poles: 7 ●Compatible wire range: AWG #28 to #22 ●Withstand voltage (V): AC1500/1 minute ●Rated current: 3A ●A (mm): 15.0 ●B (mm): 18.2 ●C (mm): 21.2 ●Insulation resistance: 500MΩ or more ●Compatible contact: BHF-001T-0.8BS ●Rated voltage (V): 250V ●Operating temperature range: -25℃ to +85℃ (including temperature rise value) Material/Finish: ●Nylon 6 (Flame retardant grade UL94V-0)
