JST PH connector base pin top type (100 pieces) B10B-PH-KS 1 bag

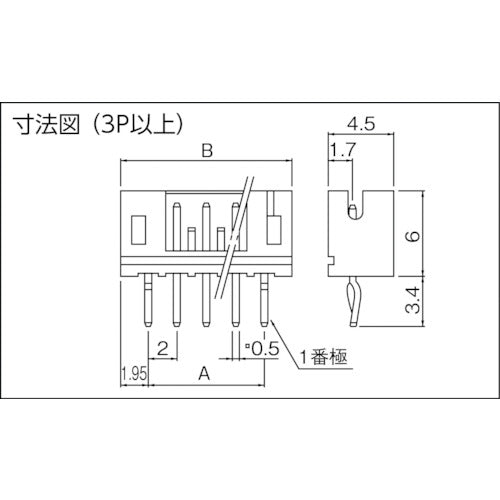

Catalog number: B10B-PH-KS Features: ● Compact design with highly reliable contacts. ● Post with base is box type. Applications: ● For wiring inside equipment. ● 2.0 mm pitch for wire-to-board connection. Specifications: ● Number of poles: 10 ● Compatible wire range: AWG #30 to #24 ● Shape: Top type ● Withstand voltage (V): AC800/1 minute ● Rated current: 2A ● A (mm): 18.0 ● B (mm): 21.9 ● Insulation resistance: 1000MΩ or more ● Rated voltage (V): 100V ● Operating temperature range: -25℃ to +85℃ (including temperature rise value) Material/Finish: ● Base: Nylon 66 (flame retardant grade UL94V-0) ● Brass, copper undercoated, tin-plated (reflow treatment)
