JST VH connector base pin top type (100 pieces) B2P-VH 1 bag

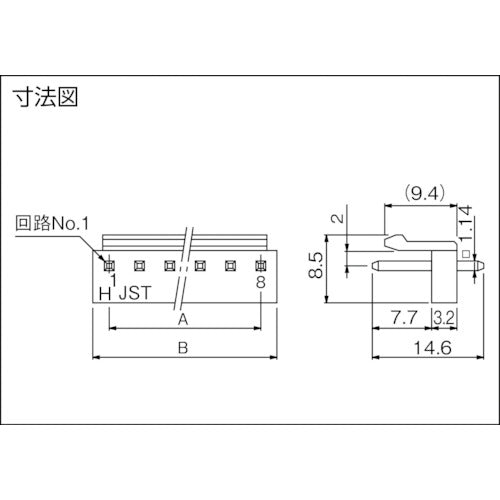

Catalog number: B2P-VH Features: ●Enables a wide range of connections from signal circuits in electronic devices to power circuits and output circuits. Applications: ●For wiring inside devices. ●3.96mm pitch for wire-to-board connections. Specifications: ●Number of poles: 2 ●Compatible wire range: AWG #22 to #18 ●Shape: Top type ●Withstand voltage (V): AC1500/1 minute ●Rated current: 7A ●A (mm): 3.96 ●B (mm): 7.86 ●Insulation resistance: 1000MΩ or more ●Rated voltage: 250V ●Operating temperature range: -25℃ to +85℃ (including temperature rise value) ●Withstand voltage: AC1500V/1 minute Materials/Finish: ●Brass, copper undercoated, tin-plated (reflow treatment) ●Base: Nylon 66 (flame retardant grade UL94V-0)
