JST XH Connector Housing 100pcs XHP-2 1 bag

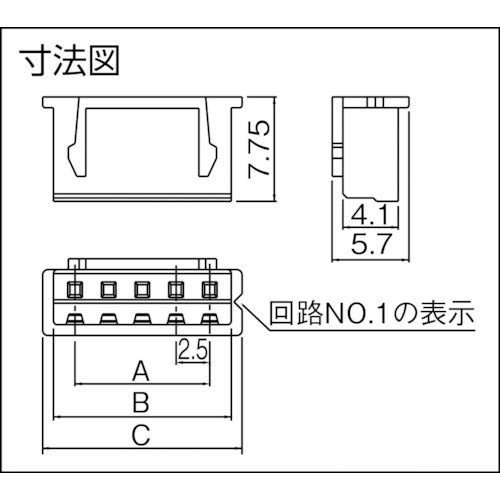

Catalog number: XHP-2 Features: ●Uses an original double leaf contact. ●Post with base is box-shaped. Applications: ●For wiring inside equipment. ●2.5mm pitch for wire-to-board connection. Specifications: ●Number of poles: 2 ●Applicable wire range: AWG #28 to #22 ●Withstand voltage (V): AC1000/1 minute ●Rated current: 3A ●A (mm): 2.5 ●B (mm): 5.7 ●C (mm): 7.3 ●Insulation resistance: 1000MΩ or more ●Rated voltage: 250V ●Operating temperature range: -25℃ to +85℃ (including temperature rise value) ●Withstand voltage: AC1000V/1 minute Material/Finish: ●Nylon 6 (Flame retardant grade UL94V-0)
