JST XH Connector Housing 100pcs XHP-9 1 bag

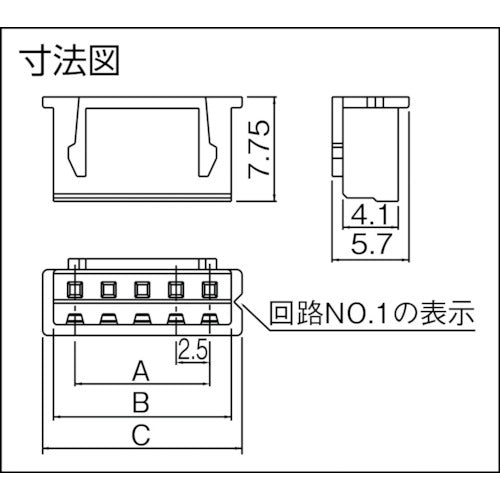

Catalog number: XHP-9 Features: ●Uses an original double leaf contact. ●Post with base is box-shaped. Applications: ●For wiring inside equipment. ●2.5mm pitch for wire-to-board connection. Specifications: ●Number of poles: 9 ●Compatible wire range: AWG #28 to #22 ●Withstand voltage (V): AC1000/1 minute ●Rated current: 3A ●A (mm): 20 ●B (mm): 23.2 ●C (mm): 24.8 ●Insulation resistance: 1000MΩ or more ●Rated voltage (V): 250V ●Operating temperature range: -25℃ to +85℃ (including temperature rise value) Material/Finish: ●Nylon 6 (Flame retardant grade UL94V-0)
