JST XH connector base pin top type (100 pieces) B10B-XH-A 1 bag

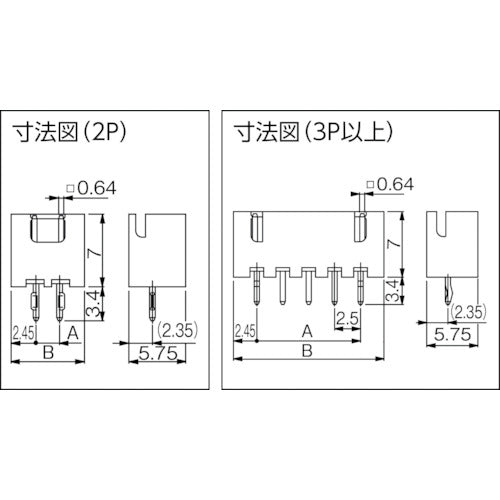

Catalog number: B10B-XH-A Features: ●Uses an original double leaf contact. ●Post with base is box-shaped. Applications: ●For wiring inside equipment. ●2.5mm pitch for wire-to-board connection. Specifications: ●Number of poles: 10 ●Applicable wire range: AWG #28 to #22 ●Shape: Top type ●Withstand voltage (V): AC1000/1 minute ●Rated current: 3A ●A (mm): 22.5 ●B (mm): 27.4 ●Insulation resistance: 1000MΩ or more ●Rated voltage (V): 250V ●Operating temperature range: -25℃ to +85℃ (including temperature rise value) Material/Finish: ●Brass, copper undercoated, tin-plated (reflow treatment) ●Base: Nylon 66 (flame retardant grade UL94V-0)
