JST YL Connector Housing Plug 100pcs YLP-02V 1 bag

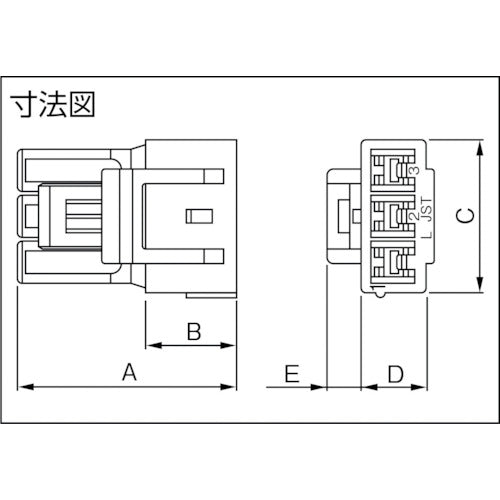

Catalog number: YLP-02V Features: ● Housing lance method is used to fix the contact and housing. Applications: ● For relay connection. ● 4.5 mm pitch for wire-to-wire connection. Specifications: ● Number of poles: 2 ● Suitable wire range: AWG #26 to #16, 0.13 to 1.25 mm [squared] ● Withstand voltage (V): AC1500/1 minute ● Rated current: MAX10A ● A (mm): 20.9 ● B (mm): 8.5 ● C (mm): 10.3 ● D (mm): 6 ● E (mm): 3.5 ● Insulation resistance: 1000 MΩ or more ● Rated voltage: MAX300V ● Operating temperature range: -25℃ to +90℃ (including temperature rise value) ● Withstand voltage: AC1500V/1 minute Material/Finish: ● Nylon 66 (Flame retardant grade UL94V-0)
