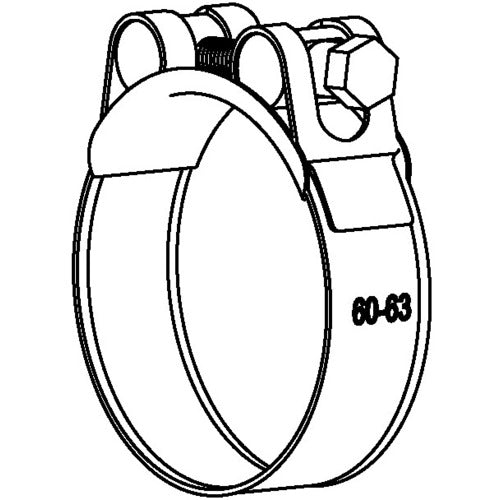

Catalog number: JSC059SS316 Features: ●Same size as the standard type, but achieves high torque tightening. ●All stainless steel construction for better corrosion resistance. ●Smooth finish on the contact surface with the hose, so it will not be damaged. ●Can be tightened tightly while maintaining its round shape. Applications: ●For food, port, and chemical industries. ●For environments that require high corrosion resistance. Specifications: ●Maximum diameter (mm): 59 ●Minimum diameter (mm): 56 ●Band width (mm): 20 ●Thickness (mm): 1.0 ●Tightening torque (N・m): 6.0-8.0 ●Hexagonal bolt (mm): 10 ●DIN3017 standard certified, SAE J1508 (Type TB), salt spray test (NSS): 2000 hours ●Hexagonal bolt: 10mm Material/Finish: ●Stainless steel (SUS316)
