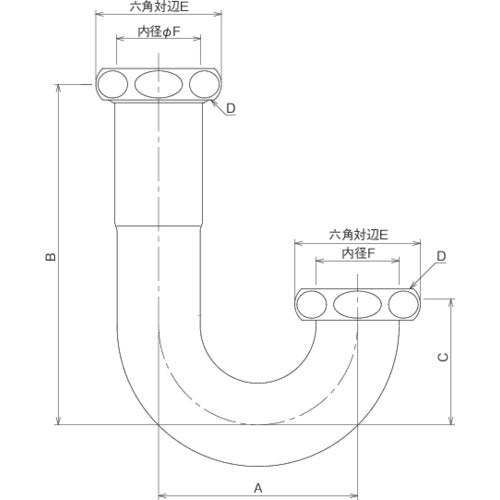

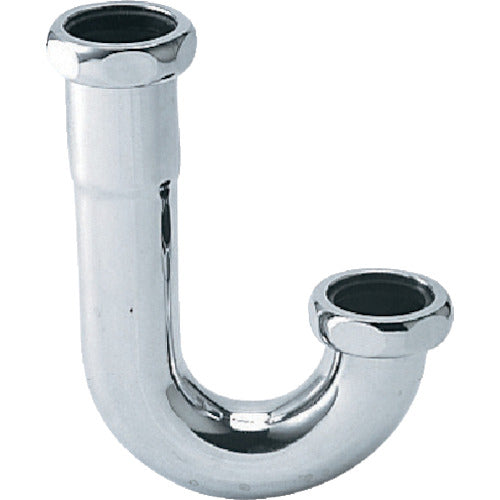

Catalog number: 0434-25 Features: ●When the drain position cannot be adjusted with the tail pipe, the position can be adjusted by using the trap U-pipe. Uses: ●For drainage of washbasins and hand washing Specifications: ●A(mm): 60.0 ●B(mm): 74.0 ●C(mm): 41.0 ●D: W32, ridge 16 ●E(mm): 36.0 ●F(mm): 26.2 ●G(mm): 40.0 ●Tail pipe side: Insert/with gasket and nut ●Kiseru/walking stick pipe side: With flat gasket and nut Material/Finish: ●Brass
