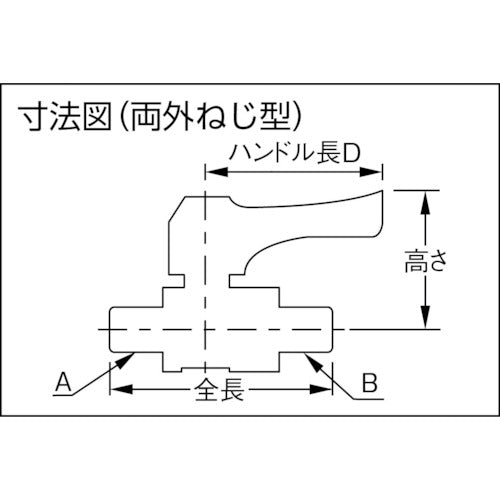

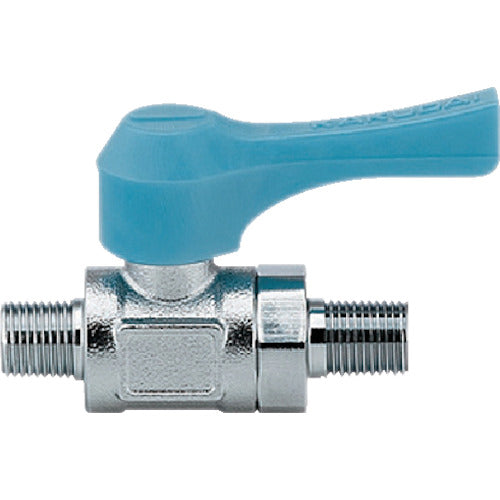

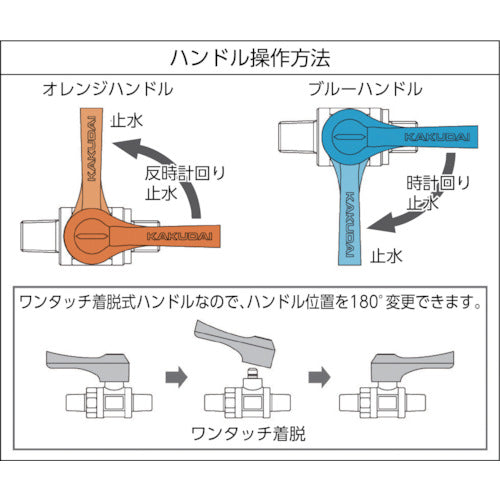

Catalog number: 651-801-6 Features: ● One-touch detachable handle, so the handle position can be changed by 180°. Applications: ● For drinking water, oil, and air. Specifications: ● Nominal diameter A: R1/4 ● Nominal diameter B: R1/4 ● Total length (mm): 50.4 ● Height (mm): 30.0 ● Handle length D (mm): 40 ● Color: Blue ● Operating pressure: 0 to 1.0 MPa ● One-touch detachable handle ● Heat-resistant temperature: 1 to 80°C ● Orange handle: Counterclockwise water stop, Blue handle: Clockwise water stop Material/Finish: ● Brass
