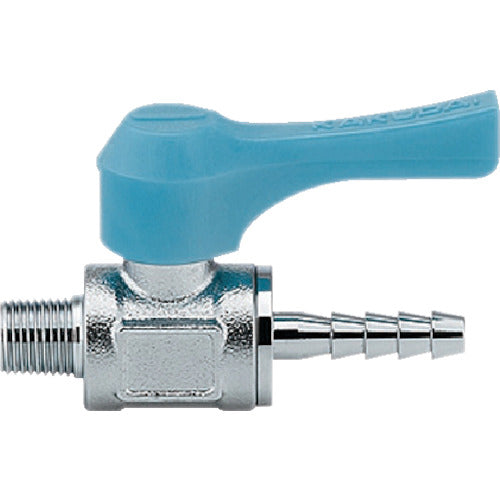

KAKUDAI Miniature Ball Valve Nominal Size (A) R3/8 Total Length 59.4 Blue 651-805-3/8X10.5 1 pc

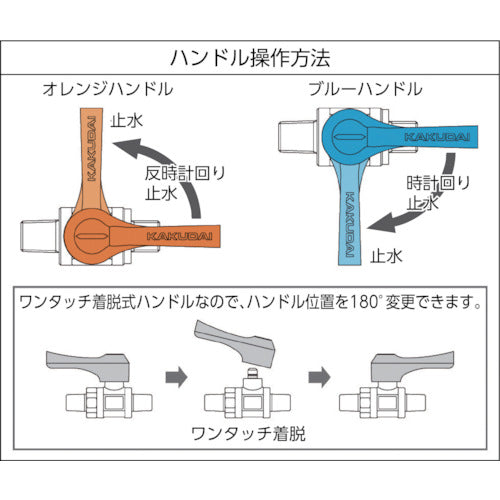

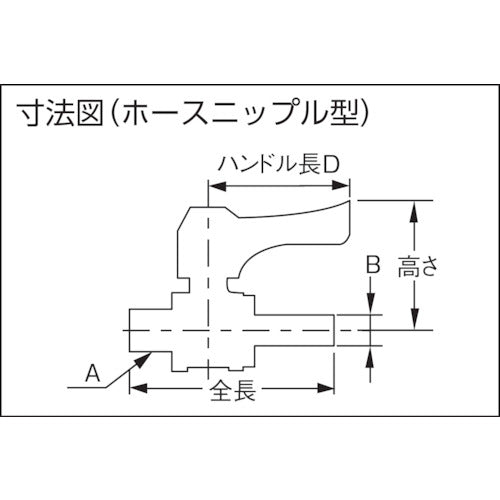

Catalog number: 651-805-3/8X10.5 Features: ●One-touch detachable handle, so the handle position can be changed 180°. Applications: ●For drinking water, oil, and air. Specifications: ●Total length (mm): 59.4 ●Height (mm): 30.0 ●Handle length D (mm): 40 ●Outer diameter of bamboo shoot (mm): 10.5 ●Color: Blue ●A dimension: R3/8 ●B dimension (mm): 10.5 ●Water stop: Clockwise ●Operating pressure: 0 to 1.0 MPa ●One-touch detachable handle ●Heat-resistant temperature: 1 to 80°C ●Orange handle: Counterclockwise water stop, Blue handle: Clockwise water stop Material/Finish: ●Brass
