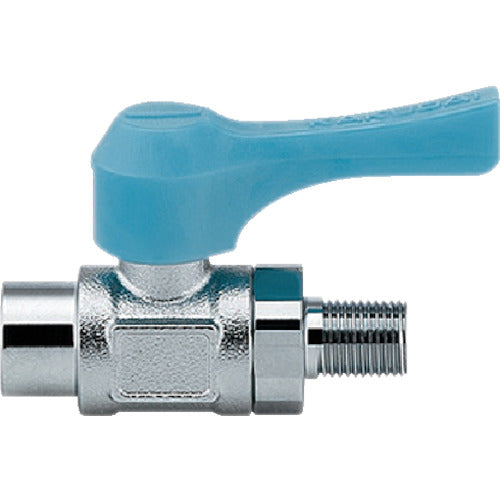

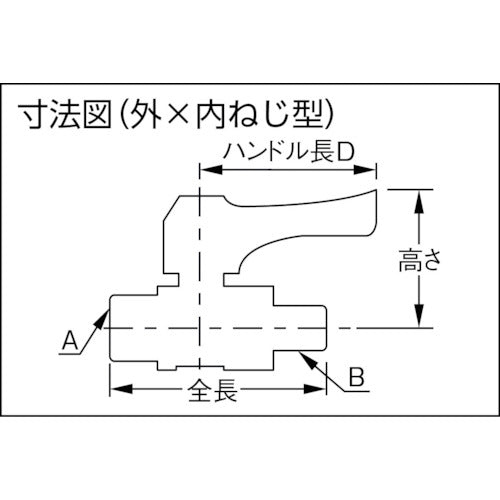

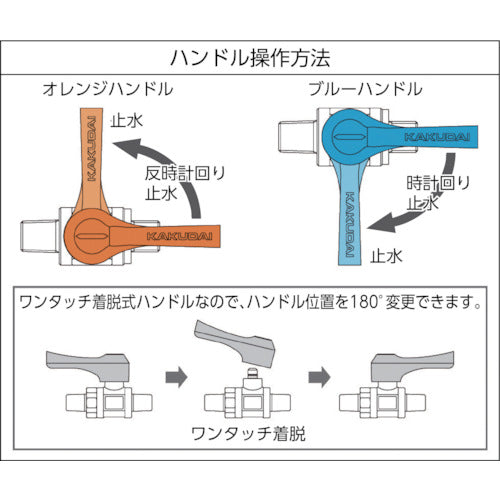

Catalog number: 651-803-10 Features: ●One-touch detachable handle, so the handle position can be changed by 180°. Applications: ●For drinking water, oil, and air. Specifications: ●Total length (mm): 59.6 ●Height (mm): 31.5 ●Handle length D (mm): 40 ●Color: Blue ●Dimension A: Rc3/8 ●Dimension B: R3/8 ●Water stop: Clockwise ●Operating pressure: 0 to 1.0 MPa ●One-touch detachable handle ●Heat-resistant temperature: 1 to 80°C ●Orange handle: Counterclockwise water stop, Blue handle: Clockwise water stop Material/Finish: ●Brass
