KANA Idler 35C16 Wheel ID35C16D10 1 piece

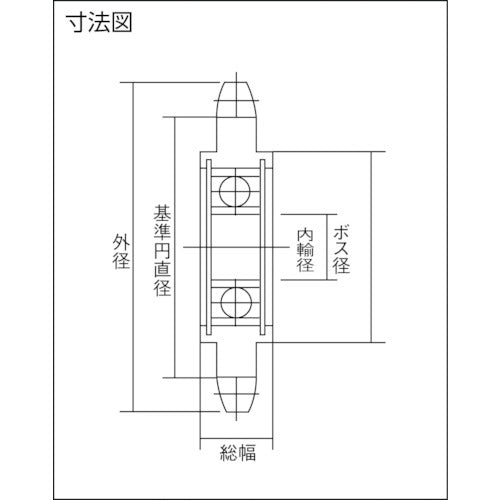

Catalog number: ID35C16D10 Features: ●Idler sprockets maintain the appropriate tension during roller chain transmission. ●The teeth are hardened at the tips for excellent durability. ●Excellent durability and smooth, quiet rotation. Applications: ●Combine an idler, pin and tightener to adjust chain elongation. Specifications: ●Chain No.: 35 ●Number of teeth: 16 ●Outer diameter (mm): 54 ●Reference circle diameter (mm): 48.82 ●Boss diameter (mm): 38 ●Inner ring diameter (mm): 10 ●Shape: C-type ●Total width (mm): 14 ●Compatible bearings: 6000ZZ ●Compatible idler shaft: IDP6000 Material/Finish: ●Sprocket: Carbon steel for mechanical construction ●Heat treatment: High-frequency hardening of teeth
