KANA Engineering Plastic Idler 35C18 Wheel EPID35C18D15 1 pc

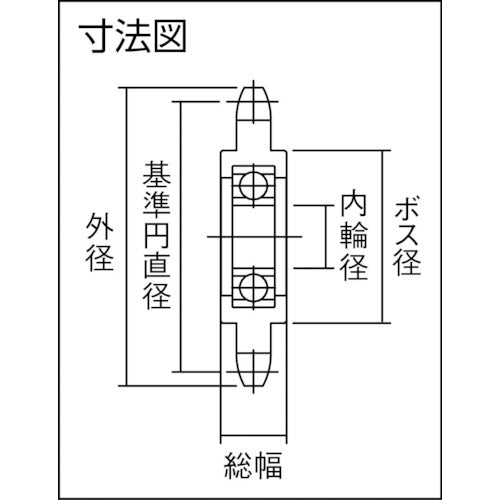

Catalog number: EPID35C18D15 Features: ●Lightweight because it uses general-purpose engineering plastic polyamide resin 6 nylon. ●Idler sprocket that emphasizes low noise. Uses: ●Combines idler, pin and tightener to adjust chain elongation. Specifications: ●Chain No.: 35 ●Number of teeth: 18 ●Outer diameter (mm): 60 ●Reference circle diameter (mm): 54.85 ●Boss diameter (mm): 42 ●Inner ring diameter (mm): 15 ●Shape: C-type ●Total width (mm): 17 ●Compatible bearing: 6202ZZ ●Compatible idler shaft: IDP6202 ●Operating temperature: -10℃ to +80℃ ●6 nylon resin (black) insert molding Material/Finish: ●Sprocket: Polyamide (PA)
