KANA Coupling Sprocket Main Unit Chain Pitch 12.7mm 4014H 1 S

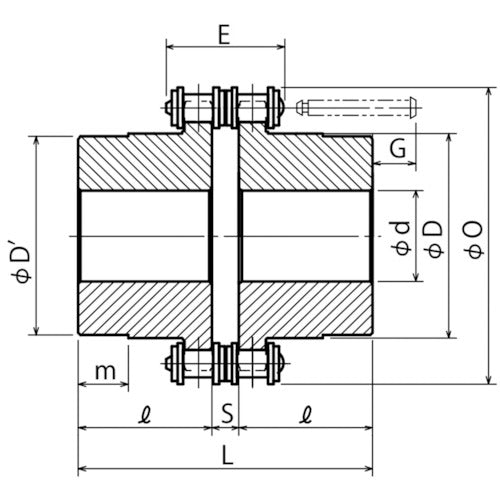

Catalog number: 4014H Features: ●Can transmit power from shafts with different diameters. ●Set of two chain coupling sprockets and a special roller chain. Applications: ●For transmission and driving of various equipment. Specifications: ● Shaft diameter range maximum (mm): 28 ● Shaft diameter range minimum (predrilled hole H10) (mm): 14 (12) ● Chain pitch (mm): 12.7 ● Maximum width of chain used (mm): 32 ● Body dimension S (mm): 7.4 ● Body dimension O (mm): 69 ● Body dimension m (mm): 9 ● Body dimension L (mm): 79.4 ● Body dimension l (mm): 36 ● Body dimension G (mm): 11 ● Body dimension D' (mm): 43 ● Body dimension D (mm): 45 ● Compatible case: 4014C ● Approximate weight (kg): 1.1 ● Chain coupling body material / finish: ● Sprocket: Carbon steel for mechanical structure, heat treatment: High-frequency hardening of teeth ● Roller chain: Iron Set contents / accessories: ● Chain coupling sprocket x 2 ● Roller chain x 1
