KANA Coupling Sprocket Main Unit Chain Pitch 15.875mm 5016H 1 S

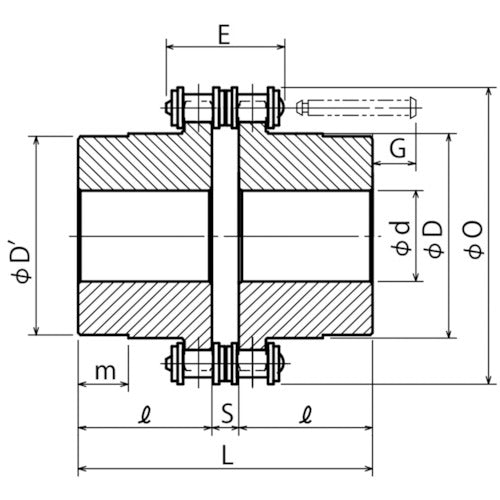

Catalog number: 5016H Features: ●Can transmit power from shafts with different diameters. ●Set of two chain coupling sprockets and a special roller chain. Applications: ●For transmission and driving of various equipment. Specifications: ● Shaft diameter range maximum (mm): 40 ● Shaft diameter range minimum (predrilled hole H10) (mm): 18 (16) ● Chain pitch (mm): 15.875 ● Maximum width of chain used (mm): 39.9 ● Body dimension S (mm): 9.7 ● Body dimension O (mm): 96 ● Body dimension m (mm): 16 ● Body dimension L (mm): 99.7 ● Body dimension l (mm): 45 ● Body dimension G (mm): 12 ● Body dimension D' (mm): 60 ● Body dimension D (mm): 63 ● Compatible case: 5016C ● Approximate weight (kg): 2.7 ● Chain coupling body material / finish: ● Sprocket: Carbon steel for mechanical structure, heat treatment: High-frequency hardening of teeth ● Roller chain: Iron Set contents / accessories: ● Chain coupling sprocket x 2 ● Roller chain x 1
