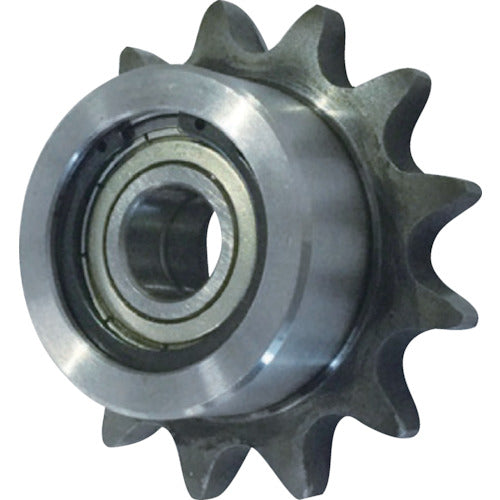

KANA B-type double idler sprocket, 12 teeth, outer diameter 69, WID50B12D12, 1 pc

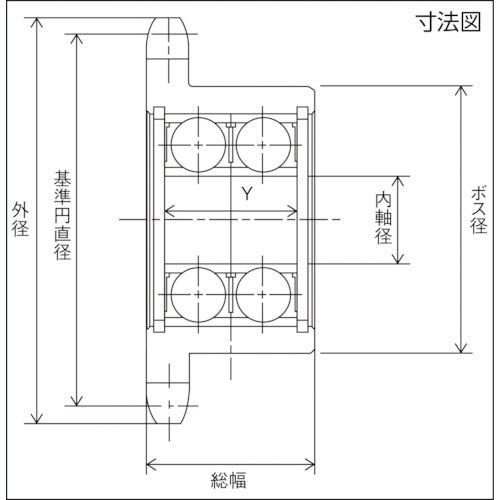

Catalog number: WID50B12D12 Features: ●Since it uses a B-shape, it is easy to design if the drive and driven sides are the same shape. Applications: ●Tensioner. Specifications: ●Chain No.: 50 ●Number of teeth: 12 ●Outer diameter (mm): 69 ●Reference circle diameter (mm): 61.34 ●Boss diameter (mm): 43 ●Inner ring diameter (mm): 12 ●Shape: B-shape ●Total width (mm): 26 ●Compatible bearing: 6201ZZ ●Compatible idler shaft: IDP6201W ●B-shape ●Uses two bearings ●Product with excellent load-bearing capacity ●Tooth width T: 8.7 ●Bearing used: 6201ZZ Material/Finish: ●Carbon steel for mechanical structures
